SITRANS FCT070
Process Instrumentation
Coriolis Mass Flow Transmitter

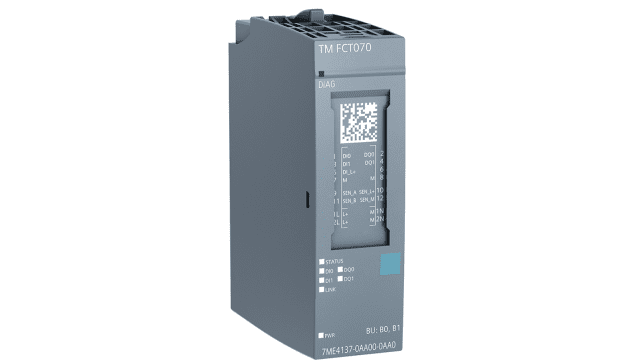

The SITRANS FCT070 Coriolis flow transmitter is a technology module which can easily integrate Coriolis flow meters into the SIMATIC ET 200SP system and connect to SIMATIC S7 controllers. Faceplates and drivers are included for direct integration into the SIEMENS TIA Portal and SIMATIC PCS 7.
The SITRANS FCT070 can be combined with the following sensors of the Coriolis series.
SITRANS FCS300: Innovative design and stable performance
SITRANS FCS400: For OEM and skids
SITRANS FCS MASS 2100: For low flow applications
Benefits
Discover the benefits for greater flexibility and easier operation
- Fast setup and flexible combinations with additional SIMATIC ET200SP modules
- Simple module selection and integration via Siemens TIA Selector
- Direct integration with drivers and user interfaces for the SIMATIC TIA Portal and SIMATIC PCS 7
- Real-time exchange between controller and flow meter
- For universal use with all Siemens Coriolis flowmeters via digital sensor link
Detail
| Technology Module | For SIMATIC 200SP Profinet |
|---|---|
| Base unit ET 200SP | BU 20 type B1 |
| Supported control | SIMATIC PCS7 V9.0 SP2 or higher TIA Portal V16 or higher SIMATIC STEP 7 V5.6 SP3 or higher |
| OutputsOutputs | 2 individual programmable outputs |
| InputsInputs | 2 individual programmable inputs |
| Communication | Profinet via SIMATIC ET 200SP |
| Protection class | IP 20 |
| Environmental temperature | -13° F…122 °F Vertical (140°F) |
| Approvals (standard version)Approvals (standard version) | CE cULus Tick KCC ROHS |
| Approvals (Ex version) | ATEX II 3 G Ex ec IIC T.. Gc IECEx Ex ec IIC T4 With barrier SITRANS I300 also for ATEX zone 1 |
| Power | 24V, Class 2, max. 0.5 A |
