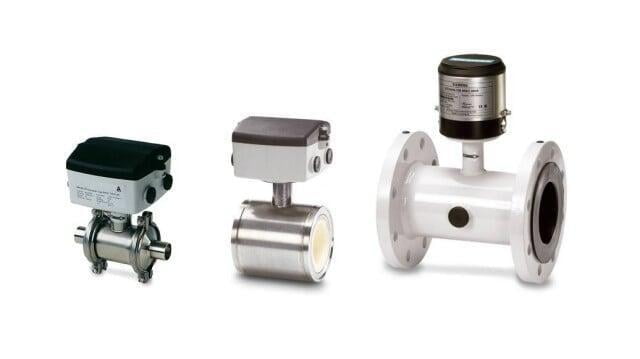

SITRANS FM MAG 1100F

Process Instrumentation

Electromagnetic flow meter sensor

The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections. It meets all sanitary requirements and is 3A certified and EHEDG approved.

MAG 1100F Catalog

specifications

Download PDF

In order to have a complete flowmeter please combine it with one of the following MAG transmitters:



Needs Link -SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate

Needs Link -SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate

Needs Link - SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate


Application Examples: Food industry, Beverage industry, Pharmaceutical industry

Benefits

  • Flexible and unique process connections

  • Standard liner options that fully cover the food and beverage applications

  • Short delivery time on standard process connections

  • IP67/NEMA 4x rating that is upgradable to IP68/NEMA 6P

  • Sanitary design for CIP/SIP cleaning

Detail

Measuring range0 to 10 m/s
Nominal sizeFrom DN 10 to DN 100 (3/8" to 4")
 Accuracy0.2 % ± 1 mm/s
0.4 % ± 1 mm/s (PFA)

 Operating PressureMax. 40 bar (Max. 580 psi)
 Ambient temperatureFrom -40 to 100°C (-40 to 212°F)
 Approvals MI-001
Danak
PTB
OIML R49
EX-approvals FM/CSA Class 1, Div 2
