SITRANS FM MAG 3100 P
Process Instrumentation
Electromagnetic flow meter sensor

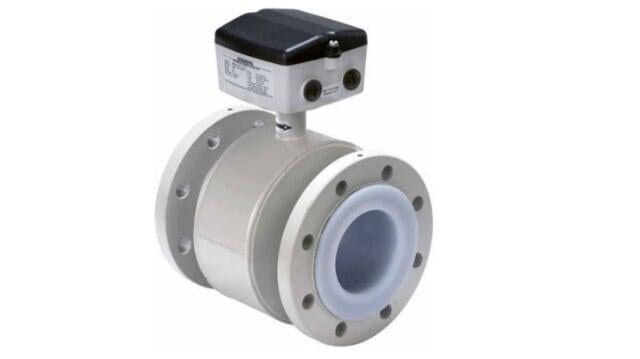

The SITRANS FM MAG 3100 P electromagnetic flow sensor is designed to meet the most common specifications within the chemical and process industries. It has PTFE or PFA liners and Hastelloy electrodes being the ideal combination. The fully welded construction provides a ruggedness that fits almost every flow application.
SITRANS FM MAG 3100 P Catalog
specifications
In order to have a complete flowmeter please combine it with one of the following MAG transmitters:
Needs Link -SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
Needs Link -SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
Needs Link - SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
Application Examples: Process industry, Chemical industry, Pulp & paper industry
Benefits
Short lead time 5 days + transportation
- Excellent chemical and high temperature resistance
- Fully welded construction provides a ruggedness that suits the toughest applications and environments
Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprints
Approved for hazardous areas
Detail
| Measuring range | 0 to 10 m/s |
|---|---|
| Nominal sizes | From DN 15 to DN 300 (½" to 12") |
| Accuracy | 0.2 % ±1 mm/s |
| Operating Pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -40 to 100 °C (-40 to 212 °F) |
| Medium Temperature | From -20 to 130/150 °C (-4 to 266/302 °F) |
| Liners | PFA PTFE (Teflon) |
| Electrodes | Hastelloy C22 Hastelloy C276 |
| Material | Carbon steel with corrosion resistant two component epoxy coating |
| General approval | ATEX - 2 GD Zone 1, FM / CSA Class 1 div 2 |
