SITRANS LR100
Process Instrumentation
Radar Level Transmitter
SITRANS LR100 series are 80 GHz compact radar transmitters with Bluetooth wireless technology. Featuring a narrow beam for flexible installations in existing vessel openings – or non-intrusively through plastic vessels.
LR100 Series Brochure

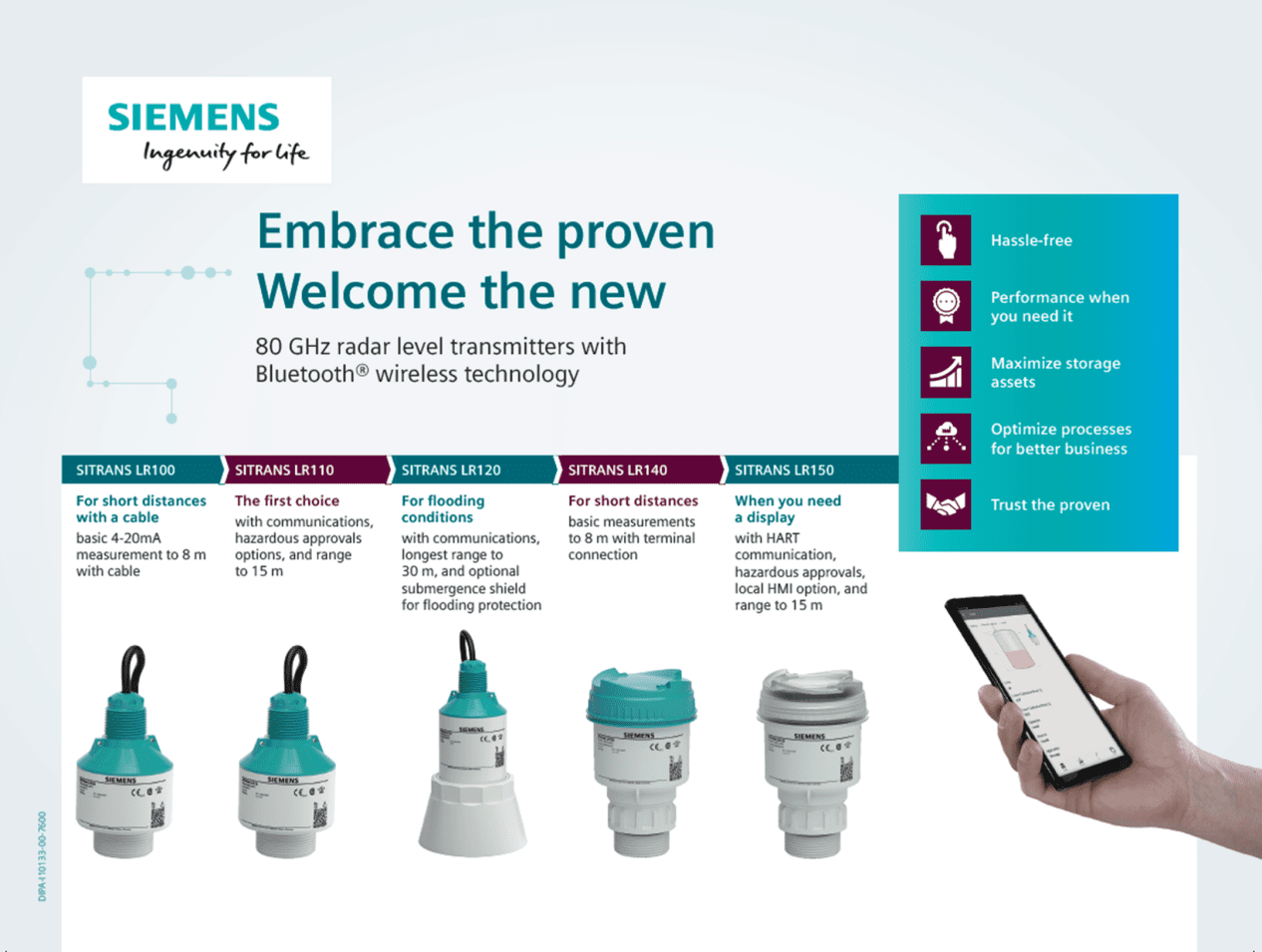

The series consists of five transmitters:
- SITRANS LR100 - for basic measurement to 8 m
- SITRANS LR110 - with communication and hazardous approvals options and range to 15 m
- SITRANS LR120 - with communication, longest range to 30 m and optional submergence shield for flooding protection.
- SITRANS LR140 - for basic measurements to 8 m with terminal connection
- SITRANS LR150 - with HART communication, hazardous approvals, local HMI option, and range to 15 m
Benefits
- Easy Bluetooth® wireless technology for easy and quick setup with Siemens SITRANS mobile IQ app
- 80 GHz narrow beam and small size allows for the easiest installation and commissioning
- Custom radar microchip means signal killer conditions like condensation, buildup or fluffy solids are no match for the extreme sensitivity of the microchip, the weakest signals are still detected
- Zero blanking zone allows measurement range right up to the sensor and with an accuracy of 2 mm you can get rid of costly manual measurement methods
- Digitalization and Industry 4.0 ready with HART 7.0 or optional Modbus RTU for intelligent, value adding data locally or to the cloud
Detail
| SITRANS LR100 | SITRANS LR110 | SITRANS LR120 | SITRANS LR140 | SITRANS LR150 | |
|---|---|---|---|---|---|
| 7ML530 | 7ML531 | 7ML532 | 7ML533 | 7ML534 | |
| Basic 4-20 mA measurement to 8 m with cable | With communications, hazardous approvals options, and range to 15 m | With communications, longest range to 30 m, and optional submergence shield for flooding protection | Basic measurement to 8 m with terminal connection | With HART communication, hazardous approvals, l ocal HMI option, and range to 15 m | |
| Measuring Principle | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW | 78-82 GHz, FMCW |
| Measuring range | 8 m (26 ft) | 15 m (49 ft) | 30 m (98 ft) | 8 m (26 ft) | 15 m (49 ft) |
| Process connections | PVDF Thread 1½" and 1" | PVDF Thread 1½" and 1" | PVDF Thread 1" | PVDF Thread 1½" | PVDF Thread 1½" |
| Process pressure | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar | -1 to 3 bar |
| Process temperature | -40 to 60 °C (-40 to 140 °F) | -40 to 80˚C (-40 to 176˚F) | -40 to 80˚C (-40 to 176˚F) | -40 to 60 °C (-40 to 140 °F) | -40 to 70˚C (-40 to 158˚F) |
| Accuracy | 5 mm (0.2") | 2 mm (0.08") | 2 mm (0.08") | 5 mm (0.2") | 2 mm (0.08") |
| Beam Angle | 8° | 8° | 8° | 8° | 8° |
| mA/Loop, Communications | 2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA/ HART or 4-wire, Modbus | 2-wire, 4 to 20 mA/ HART or 4-wire, Modbus | 2-wire, 4 to 20 mA | 2-wire, 4 to 20 mA/HART |
| Ex approvals | no | Gas and dust | Gas and dust | no | Gas |
| Optional HMI | no | no | no | no | Yes, with Quick Start Wizard and diagnostic support |
| Bluetooth | yes | yes | yes | yes | yes |
