Radar level measurement home

Radar level measurement

Real intelligence built on experience - see the difference

When it comes to radar level measurement, what will make your job easier, not harder? In the case of Siemens radar transmitters, innovative product design means answers to challenging conditions that other technologies - and our competitors’ devices - can’t handle. Our signal processing technology for level instruments is based on the experience of over a million instruments worldwide. With Siemens radar technology, high performance, quality and safety mean managing materials and optimizing inventory more effectively, increasing efficiency and saving you money.

Your solution is here: Radar level

Measurement

Download Brochure

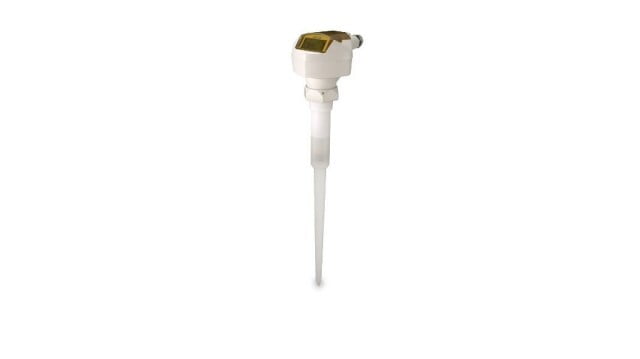

SITRANS Probe LR

For basic level measurement of liquids, with a small process connection for easy installation and low frequency operation for high immunity against condensation or deposits. Featuring 6 GHz and range up to 20 m (66 ft).

SITRANS LR100

For level measurement of liquids or solids. Featuring Bluetooth wireless technology for hassle-free level measurement.

SITRANS LR200

For level measurement of liquids in process vessels which may include turbulence, buildup, or foam. Featuring 6 GHz and a range up to 20 m (66 ft).

SITRANS LR250

The first choice for level measurement of liquids in liquid storage and process vessels, including hygienic applications. Featuring 25 GHz and a range up to 20 m (66 ft).

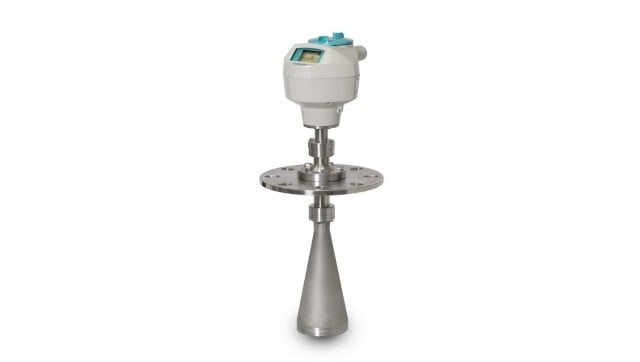

SITRANS LR260

For level measurement of solids when Intrinsically Safe compatibility is required and ideal for applications requiring quick update rates. Featuring 25 GHz and a range up to 30 m (98 ft).

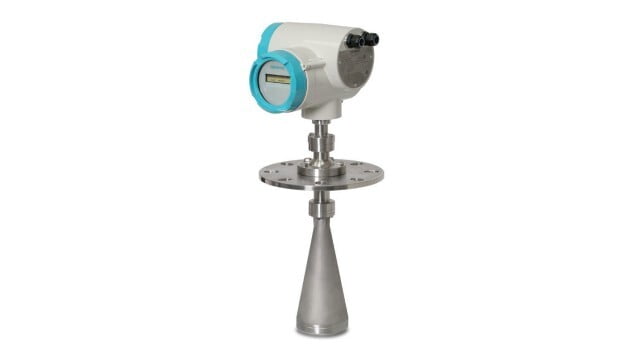

SITRANS LR460

For level measurement of solids with extremely low dielectric properties. Featuring a horn antenna with an 8 degree beam, 25 GHz, and a range up to 100 m (328 ft).

SITRANS LR560

The first choice for level measurement of solids, performing reliable from practically any installation location. Featuring a narrow beam, short wavelength, high frequency of 78 GHz, and a range up to 100 m (328 ft).
