SITRANS FM Verificator
Process Instrumentation
Electromagnetic Flow Meter Verificator

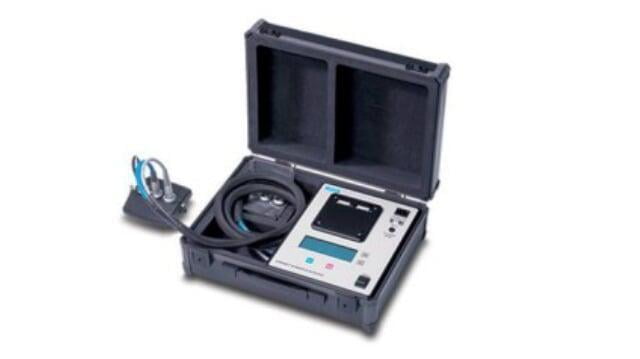

The SITRANS FM Verificator is a highly advanced instrument used to carry out verification and performance checks of Siemens electromagnetic flow meters, according to unique patented principles. The Verificator checks the general operation conditions of the flow meter but also that the flow meter is within specification, including the sensor's magnetic integrity. The verification process takes only 15 minutes and is fully automated.
SITRANS FM Verificator Catalog
Specifications
The SITRANS FM Verificator can be used with the following MAG sensors and transmitters:
SITRANS FM MAG 1100: Small sizes and wafer design
SITRANS FM MAG 1100 F: Food and pharma applications
SITRANS FM MAG 5100 W: Water applications
SITRANS FM MAG 3100: Chemical and process applications
SITRANS FM MAG 3100 P: Comprehensive product program
SITRANS F M MAG 5000: Measuring accuracy of + 0.4 % of flow rate, most cost effective transmitter
SITRANS F M MAG 6000: Measuring accuracy of + 0.2 % of flow rate, has bus communication and batch
Benefits
In-situ check of performance without interrupting the flowmeter installation
Fully automated – no manual set up or data input – with predefined factory accept levels
No expensive removal or installation costs
Full verification report to confirm meter performance according to quality standard ISO 9001 and management standard ISO 14001
Detail
| Output | RS 232 galvanically isolated |
|---|---|
| Operation Temperature | From -20 to 50 °C (-4 to 122 °F) |
| Medium Temperature | From 0 to 60 °C (32 to 140 °F) |
| PC Software | Windows 95, 98, NT or XP |
